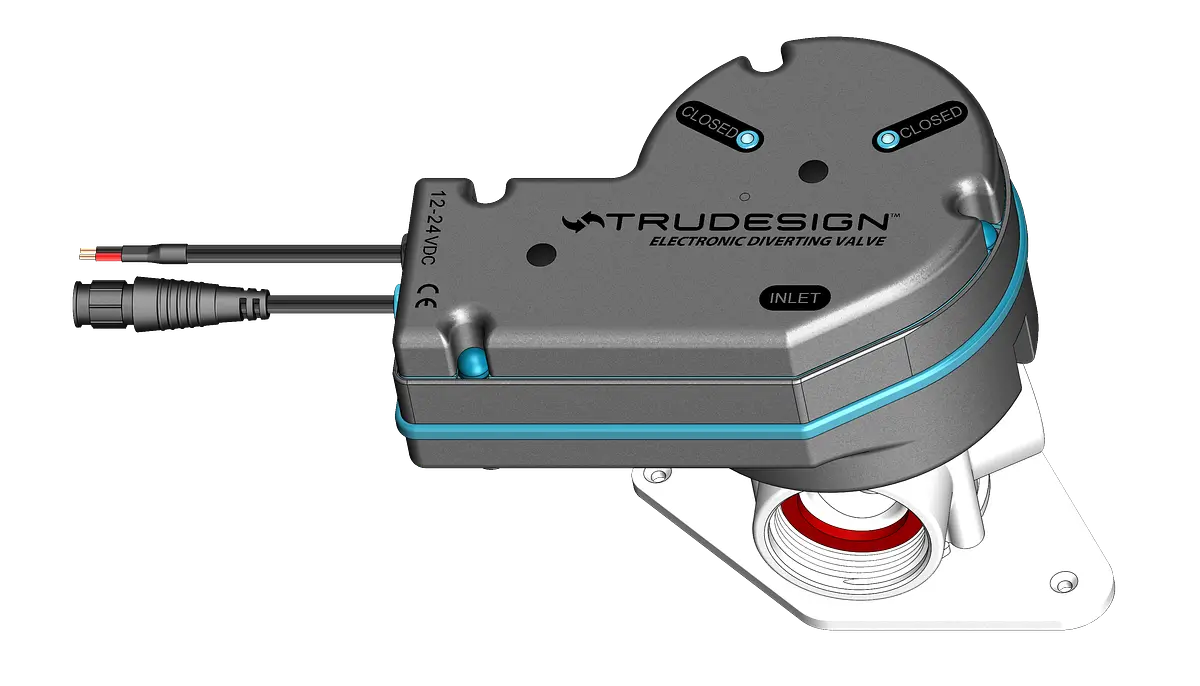

Electronic Diverter Valve (Y Valve)
The success of the Manual Aquavalve (Y Valve) and positive response from the marine industry led our design team to develop the Electronic Diverter Valve, which has become a problem solver for many modern marine plumbing installations.
The TruDesign Electronic Diverter Valve allows the diverting valve to be operated from a bridge with the push of a button on the supplied control panel. The indicators on the control panel show the current position of the valve. The valve has two positions 'holding tank' or 'overboard'.
Documents
Features
- Electronic activation of the Diverter Valve from control panel
- Lock function to "overboard" or "holding tank"
- Clear indication on control panel as to current valve position
- Versatility of installation with a vast range of hose and bend adapters
- Compatible with Manual Aquavalve adapters
- Stainless steel fastenings
- Each valve seal tested to check no o’ring leakage
- Valves are individually tested on assembly to 10 PSI
- Duel Voltage - 12 volt DC or 24 Volt DC input
Frequently Asked Questions
How to install an Electronic Diverter Valve?
The operator manual has full installation instructions - see below
Electronic Diverter Valve (EDV) Servicing and manual operation?
The Electronic Diverter Valve is supplied with full operator and servicing instructions. It is recommended that the seal is greased regularly with Silicone grease which is available in an appropria...
Should I mount the Aquavalve above the water line ?
YES. If the Aquavalve is mounted above the water line the valve will drain out therefore there is less buildup on the internal seal from the salt water that would continually sit in the valve if m...
How to service the Manual Aquavalve?
If your Aquavalve has not had the handle turned for over 12 months the chances are that the valve can become tight to turn or even jammed in the case of very high salt / calcium build up. Tools ...
Can I power / wire up the Electronic Aquavalve without the control panel?
Yes you can trigger the Electronic Aquavalve with toggle switches. However you will also need LED lights to indicate what position the valve is in - overboard or holding tank.
